MALLEABLE IRON FITTING
Malleable Iron Long M&F 90° Bend | Male Female Threaded Elbow
Malleable iron long M&F 90° bend with male and female threaded ends for changing pipe direction. Available in galvanized or black finish with BSP/BSPT or NPT thread options for water, gas and industrial piping

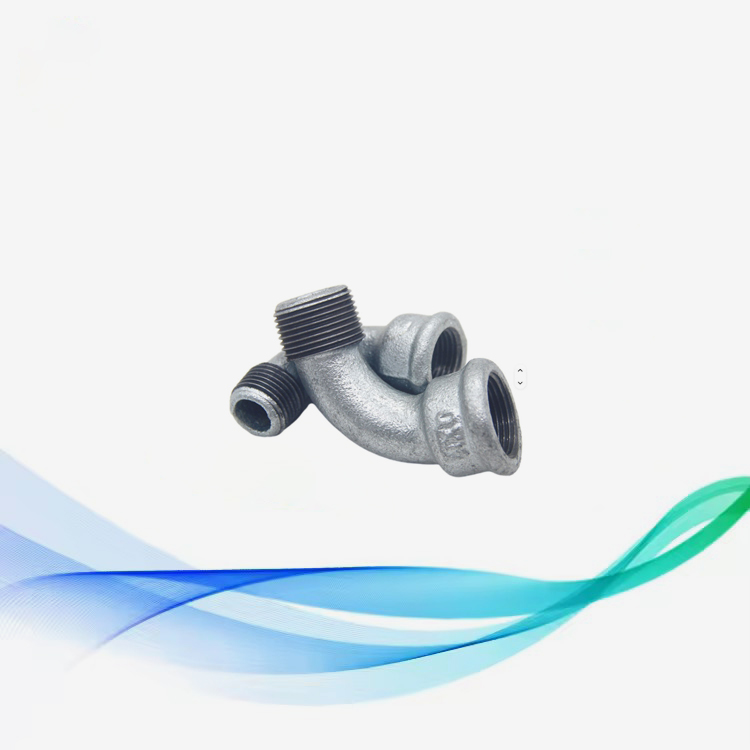

Malleable Iron Long M&F 90° Bend
The Malleable Iron Long M&F 90° Bend is designed to change pipeline direction by 90 degrees while providing a male threaded connection on one end and a female threaded connection on the other.
Compared with a standard 90° elbow, the long bend design provides a smoother directional transition and is suitable for water supply, gas, fire protection, HVAC, compressed air and general industrial piping systems.
Product Specifications
Item | Specification |
|---|---|
Product | Long M&F 90° Bend |
Material | Malleable Cast Iron |
Angle | 90 Degree |
Connection | Male × Female Thread |
Finish | Galvanized / Black |
Thread | BSP / BSPT / NPT* |
Sizes Available | 1-4“ |
Application | Water, Gas, HVAC & Industrial Piping |
Supply Type | Bulk / Project / OEM |
Thread type, size range and applicable standard should be confirmed according to order requirements.
Male & Female Threaded Connection
Unlike a standard female-to-female elbow, an M&F bend has one male threaded end and one female threaded end. This configuration can simplify certain piping connections and reduce the need for additional threaded adapters.
The long-radius bend design also provides a more gradual change in flow direction compared with a compact elbow.
Galvanized & Black Finish Options
Galvanized Malleable Iron Bend
The zinc-coated surface provides additional corrosion protection and is commonly selected for water supply, fire protection and outdoor piping applications.
Black Malleable Iron Bend
Black fittings are commonly used in gas, compressed air and general industrial piping according to project requirements.
Typical Applications
Malleable iron long M&F bends are commonly used for:
- Water supply pipelines
- Gas piping systems
- Fire protection systems
- HVAC installations
- Compressed air lines
- Irrigation systems
- Industrial pipelines
- General plumbing
Why Choose Our Malleable Iron Pipe Fittings?
We supply a range of threaded malleable iron pipe fittings for distributors, contractors and project buyers. Available products include long bends, 90° elbows, tees, sockets, unions, reducers, bushings and other threaded fittings.
Different sizes, thread types, galvanized or black finishes, packaging and marking options can be supplied according to order requirements.
For quotation, please provide the size, thread standard, finish, quantity, required standard and destination country.
FAQ
What does M&F mean on a pipe bend?
M&F means Male and Female. One end has an external male thread and the other has an internal female thread.
What is the difference between a long bend and a 90° elbow?
A long bend provides a more gradual directional change, while a standard elbow normally has a more compact body.
Are galvanized and black finishes available?
Finish options can be supplied according to product specifications and project requirements.
Can you supply BSP/BSPT or NPT threads?
Different thread standards may be available depending on the product specification. Confirm the required thread before ordering.
