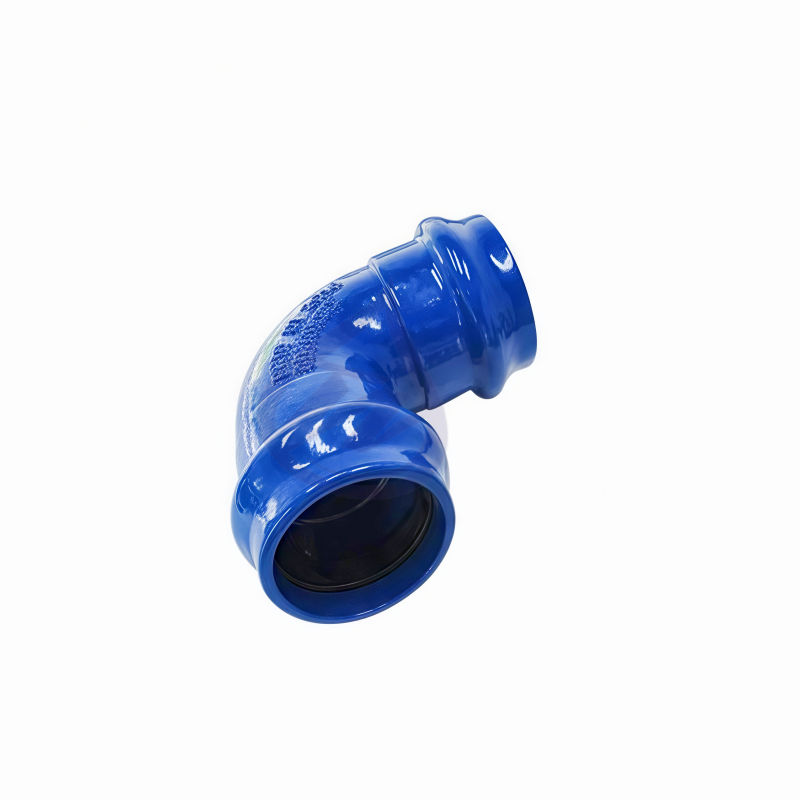

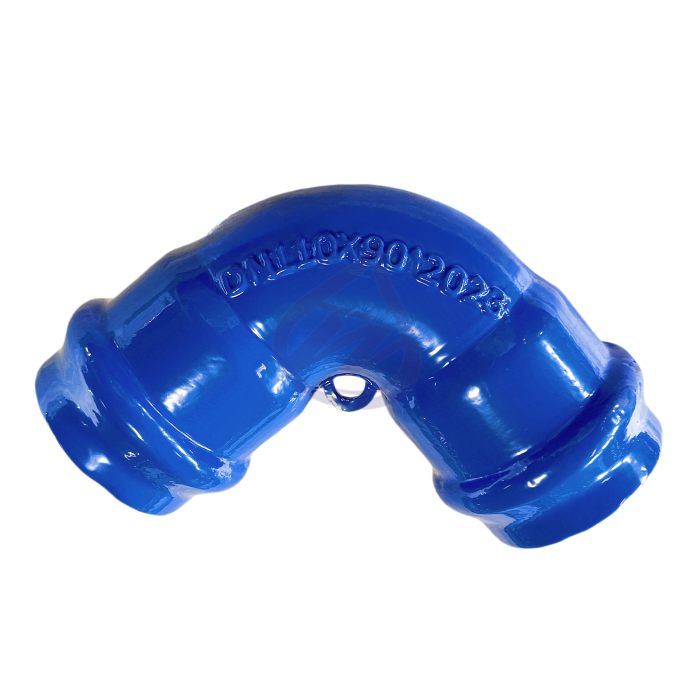

EN12842 PVC 90 Degree Ductile Iron Pipe Fittings Elbow Double Socket Bend for PVC Pipes
EN12842 PVC 90 Degree Ductile Iron Pipe Fittings Elbow Double Socket Bend for PVC Pipes
| KEY ATTRIBUTES | |
|---|---|
| Product Name | Ductile Iron Pipe Fittings - Double Flanged Reducer / Taper |
| Material | GGG500-7 or other Ductile Iron |
| Technic | Casting |
| Standard | ISO2531, EN545, EN598, ANSI |
| EN Application | EN545: Clean Water EN598: Sewage Pipelines |
| Flange Drilling | EN1092-2, ISO7005-2, 150LB, 300LB |
| Socket Type | Tyton type, K type |
| Internal Lining | Cement Mortar Lined or Fusion Bond Epoxy Powder |
| External Coating | Zinc + Black Bitumen or Fusion Bond Epoxy Powder |
| Model Number | DN80–DN2600 |
| Size | DN50–DN2600 |
| Working Pressure | PN10 / PN16 / PN25 / PN40 |
| Color | Blue, Black, Red, Brown |
| Usage | Pipeline Connection |
| Certificate | ISO 9001:2008 |
| Warranty | 2 Years |
| Customized Support | OEM, ODM |
| Accessories | Bolts, Nuts and Rubber Gaskets are available |
| Inspection | Third-party SGS inspection available as per customer request |
| Package | Wooden Box Packaging |
| DN(mm) | L(mm) PN16 | Weight (Kg) |
|---|---|---|
| 100*80 | 200 | 9.3 |
| 150*80 | 400 | 16.4 |
| 150*100 | 300 | 15.3 |
| 200*100 | 600 | 27.5 |
| 200*150 | 300 | 21.5 |
| 250*150 | 600 | 39 |
| 250*200 | 300 | 29.5 |
| 300*150 | 650 | 48.5 |
| 300*200 | 600 | 51.5 |
| 300*250 | 300 | 39.5 |
| 350*200 | 650 | 64 |
| 350*250 | 600 | 67.5 |
| 350*300 | 300 | 52.5 |
| 400*200 | 700 | 77.5 |
| 400*250 | 650 | 81.5 |
| 400*300 | 600 | 85 |
| 400*350 | 300 | 67 |
| 450*250 | 700 | 97 |
| 450*300 | 650 | 101 |
| 450*350 | 600 | 106 |
| 450*400 | 300 | 83 |
